GfA Elektromaten Sectional Door Drive SE14.21 with Control TS971
Technical Support Hotline +44 115 7180691
Only 100% New and Original Parts
Special Prices available for Door Dealers and Resellers. Contact us!
Stocked Products Ship within 24h
Product information "GfA Elektromaten Sectional Door Drive SE14.21 with Control TS971"

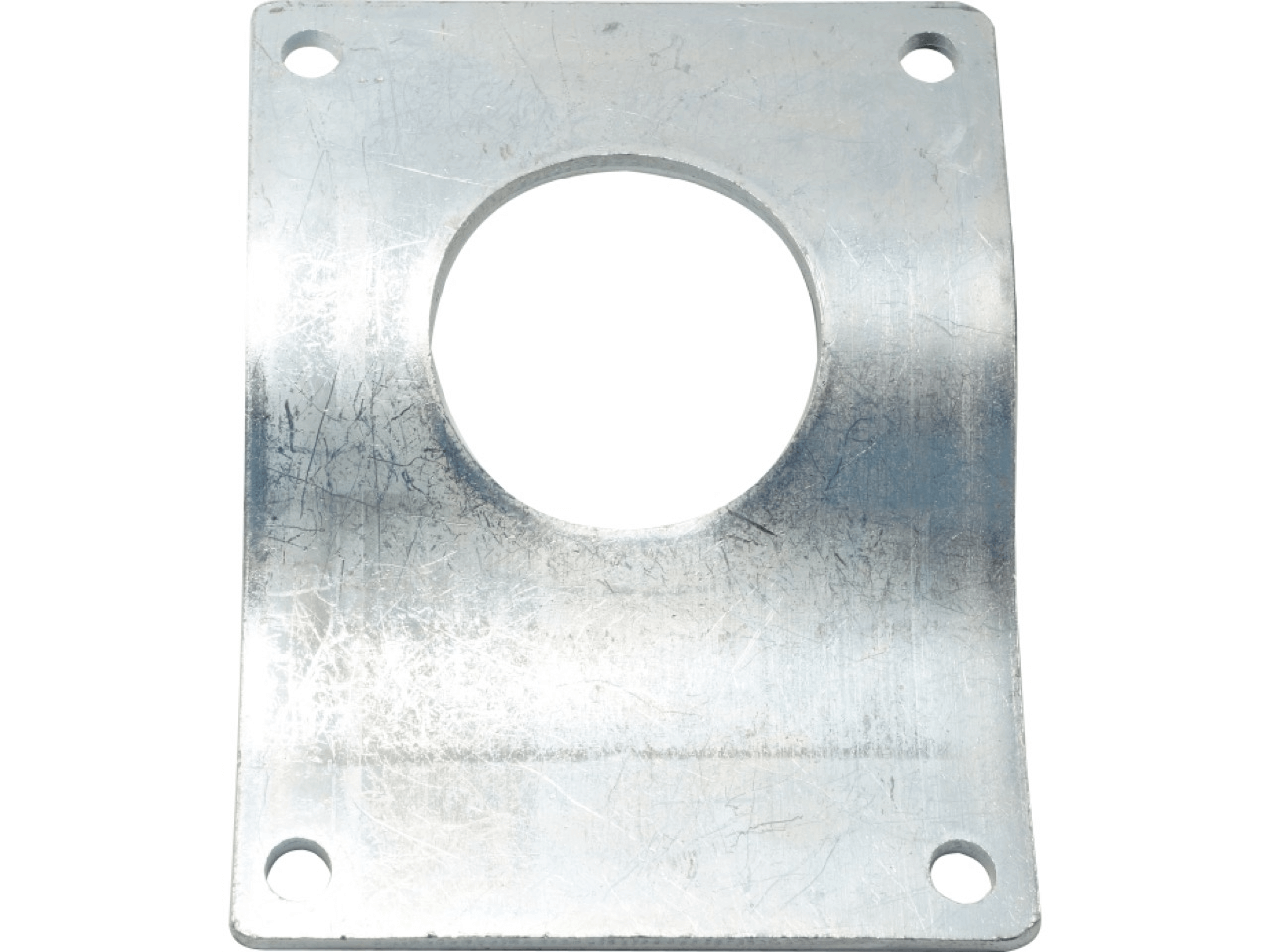

Drive set for counter-balanced sectional doors, motor torque 140 Nm, 25.4mm hollow shaft, 400 V, set contains: GfA Elektromaten drive SE14.21-25.40 SK DES, GfA Elektromaten door control unit TS971 with CEE plug, 7m motor cable, torque-support bracket
Description:
The set of GfA Elektromaten door drive SE14.21 and door control unit TS971 is the perfect choice for automating counter balanced doors. The drive by GfA Elektromaten comes with 140Nm of torque, 21 rpm and with a hollow-shaft diameter of 25.4mm it fits most sectional door types. In case of a power loss, the door can be operated by using the hand chain attached to the drive unit. The set also contains the door control unit TS971, for automatic or constant pressure to close operation. For connection of the drive to the door control, a 7m connection cable is included.
Properties:

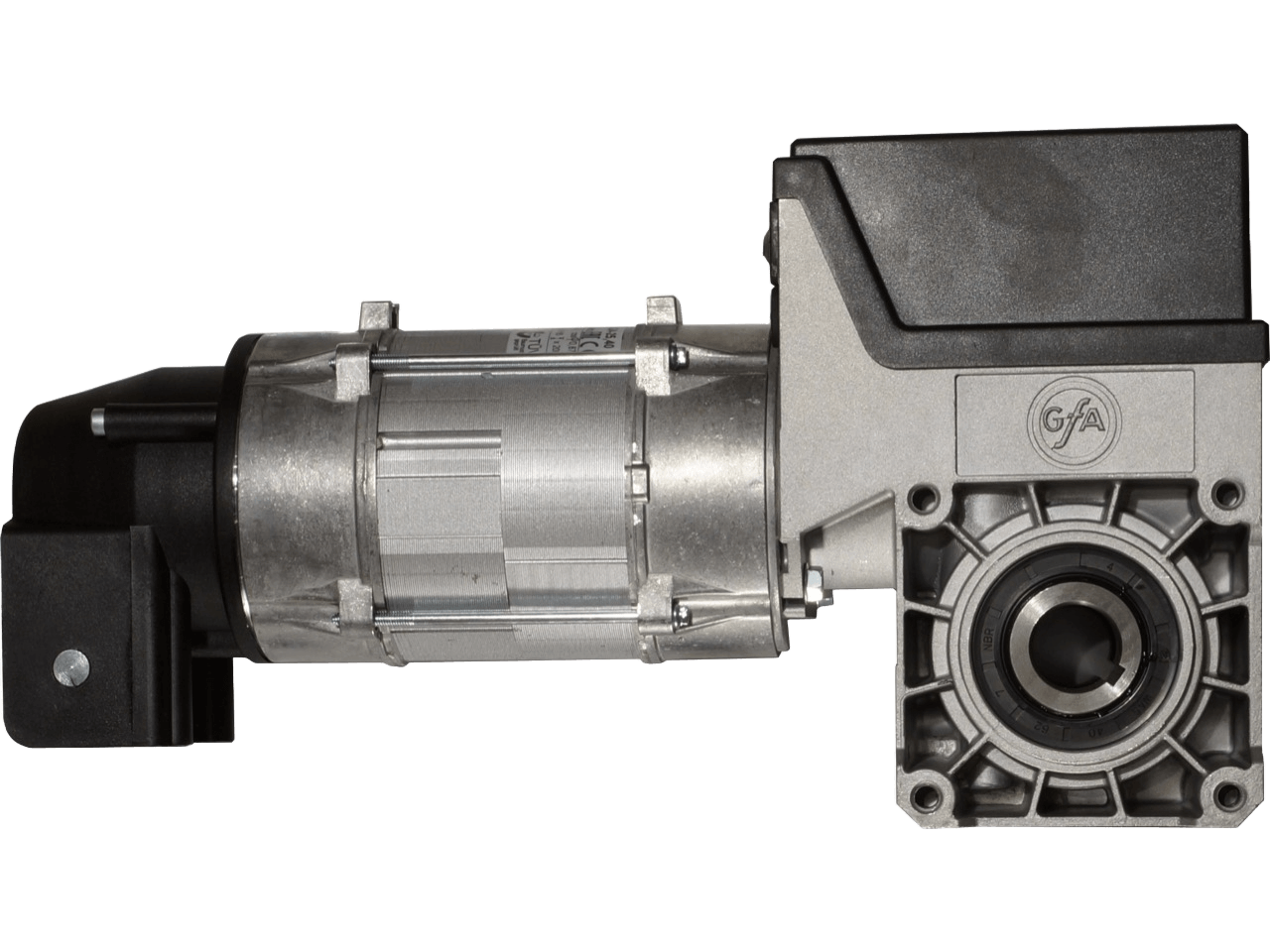

- Drive for counter-balanced doors GfA Elektromaten SE14.21
- Integrated digital limit switch DES
- Emergency operation via hand chain

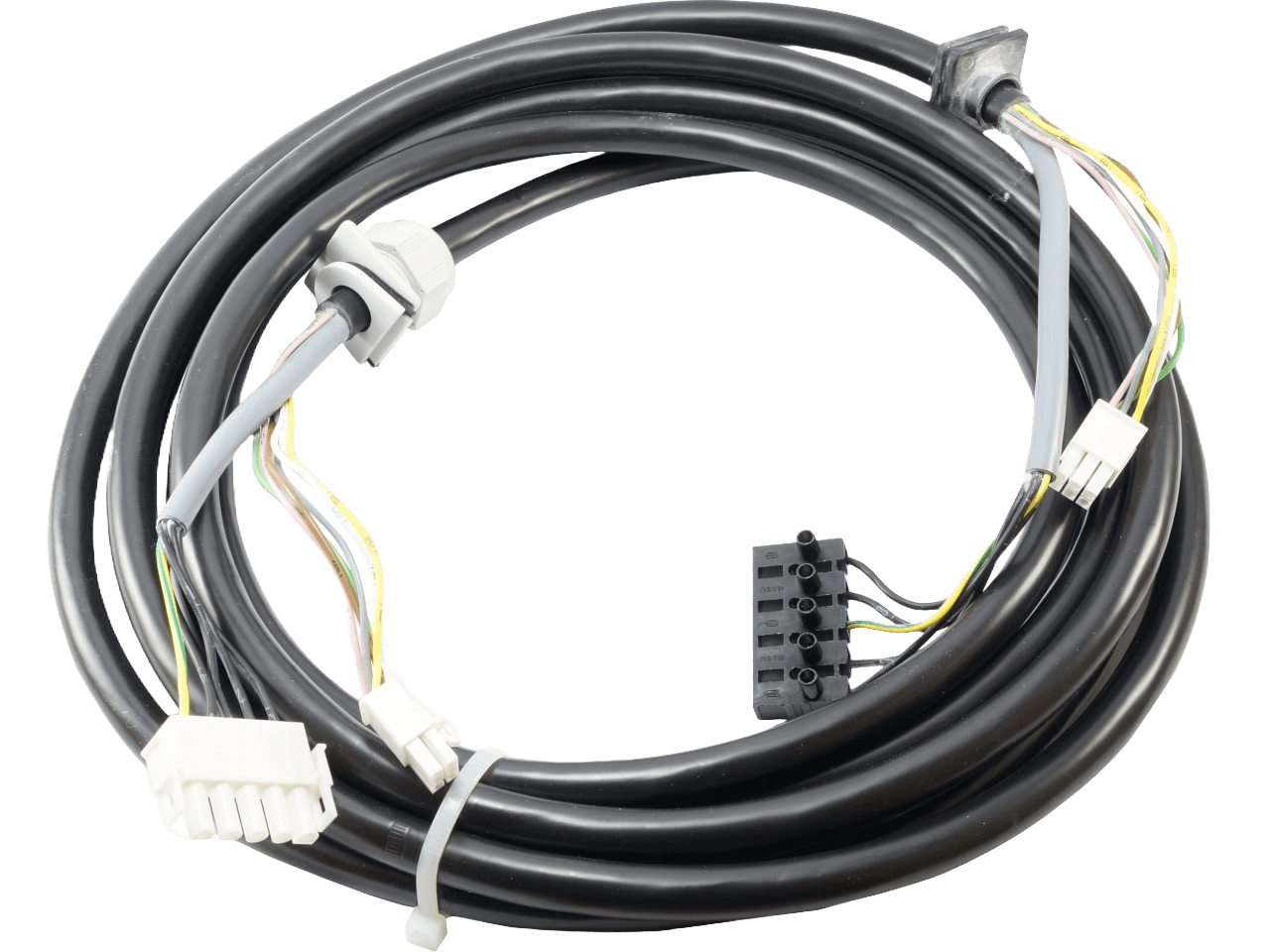

- Connection cable with 7m length

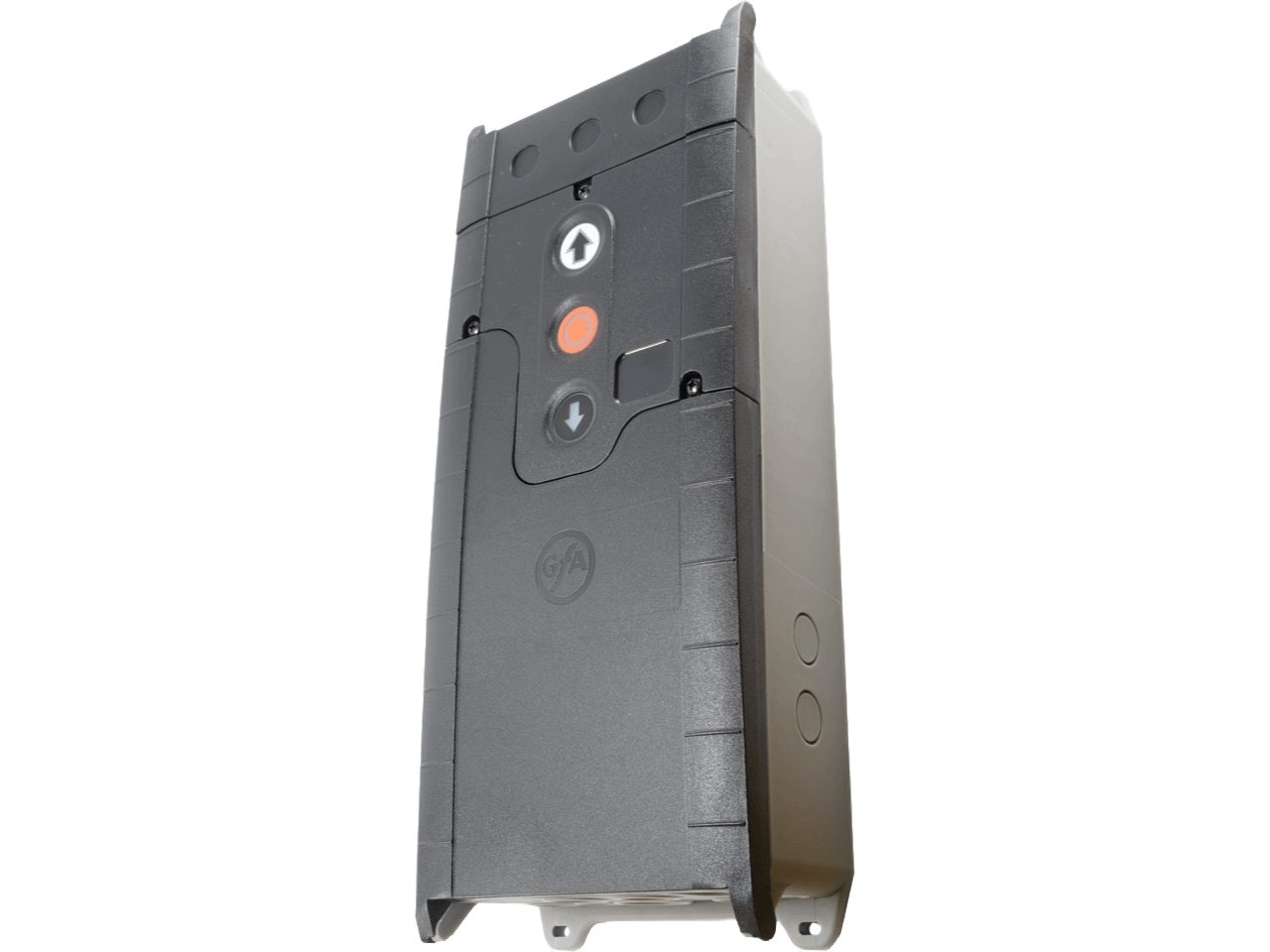

- Door control unit TS971
| Emergency Operation: | Hand Chain |
|---|---|
| Output Speed: | 21 min^-1 |
| Output Torque: | 140 Nm |
| Supply Voltage: | 3~230/400 V |
