BEA IXIO-DO1 I BLACK Motion-Sensor Presence-Sensor Installation Height 4,0m max
€0.00
Product information "BEA IXIO-DO1 I BLACK Motion-Sensor Presence-Sensor Installation Height 4,0m max"
Dual-Technology sensor for opening/reversing doors and for presence detection, radar motion detector and active-IR-presence detector in one product, 2 IR-curtains (2 x 24 Active IR spots) to monitor an area in front of the door, adjustable via LCD-Display or remote (separate accessory), 10m cable, max. installation height 4m
Description:
The IXIO DO1 combines radar technology to open and infrared technology for the protection of automatic linear sliding doors and telescopic / curved sliding doors.
Properties:
- Opening: direction-sensitive radar motion detector - lowers the duration of the opening cycle because cross-traffic is filtered
- Protection: 2 active-IR curtains (2 x 24 AIR-Spots)

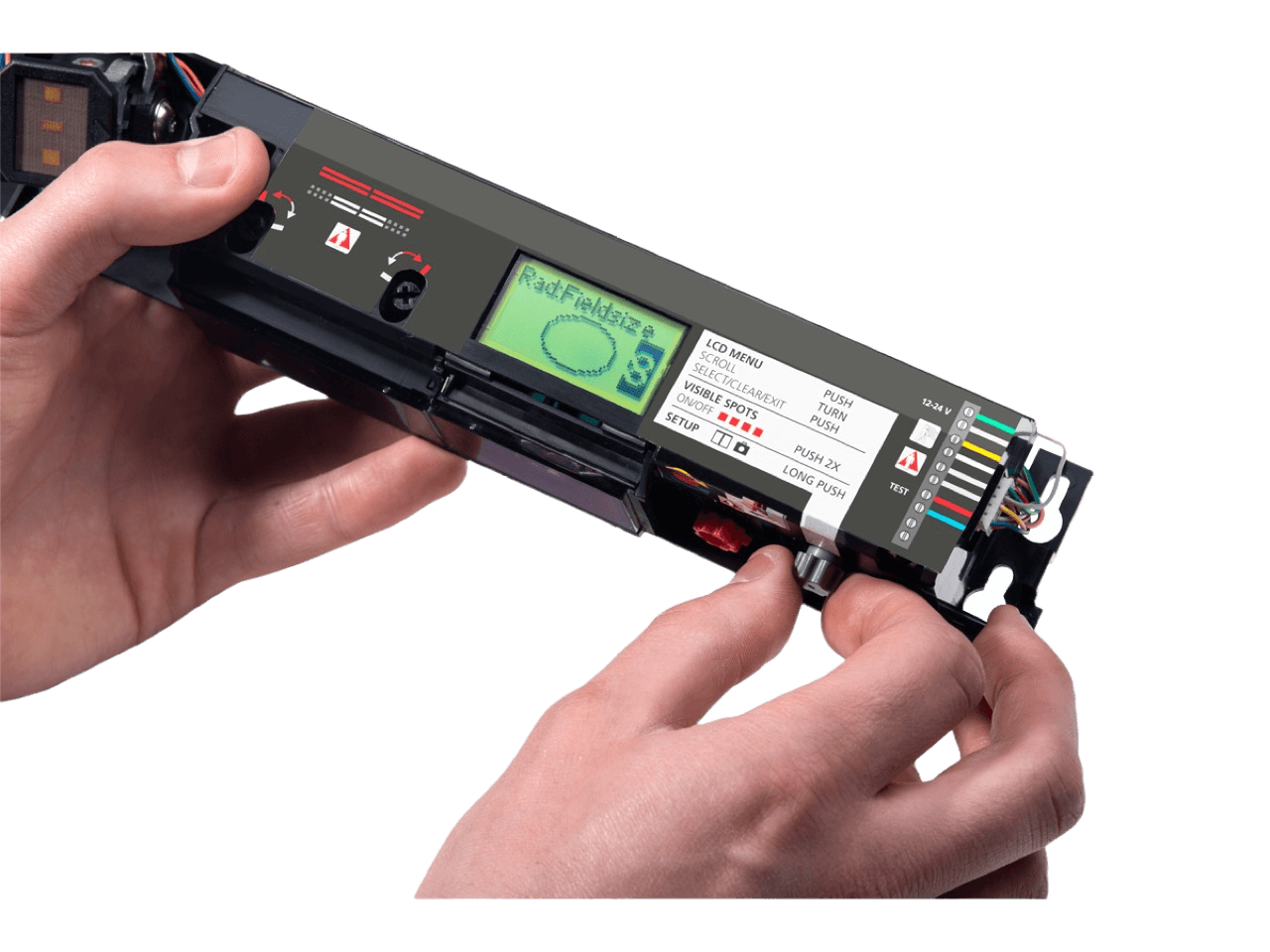

- Configuration via LCD-display or remote control

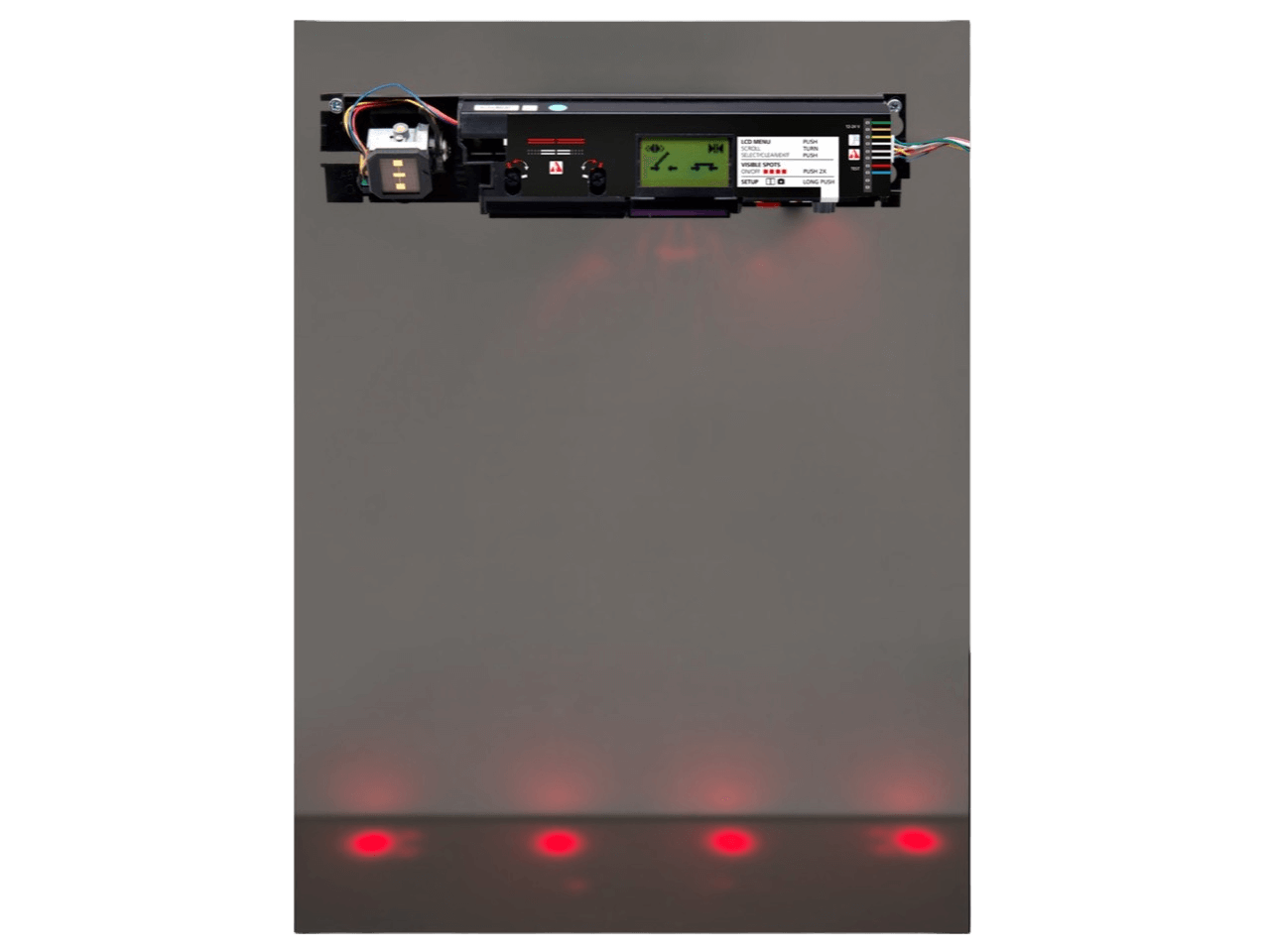

- 4 visible spots on the floor for easy setup
- 4m-long cables
- Max. installation height: 4m
| Cable Length: | 10.0 m |
|---|---|
| Connection Type: | Cable, w/o plug |
| Function: | Motion Detector, Presence Detector |
| Material: | ABS/ LURAN S |
| Max. Operating Temperature: | +55 °C |
| Min. Operating Temperature: | -25 °C |
| Output: | 2x Relay (NC/NO) |
| Protection Class: | IP 54 |
| Supply Voltage: | AC 12-24V, DC 12-24 V |
| max. Field Depth (Opening): | 3.0 m |
| max. Field Depth (Presence): | 0.6 m |
| max. Installation Height: | 4.0 m |
| max. Switching Current: | 1 A |
| min. Installation Height: | 2.0 m |
