FRABA VITECTOR DW 3O-200 Airwave Switch Normally Closed IP65 Enclosure
€49.50
delivery time: 3-5 working days
Product information "FRABA VITECTOR DW 3O-200 Airwave Switch Normally Closed IP65 Enclosure"

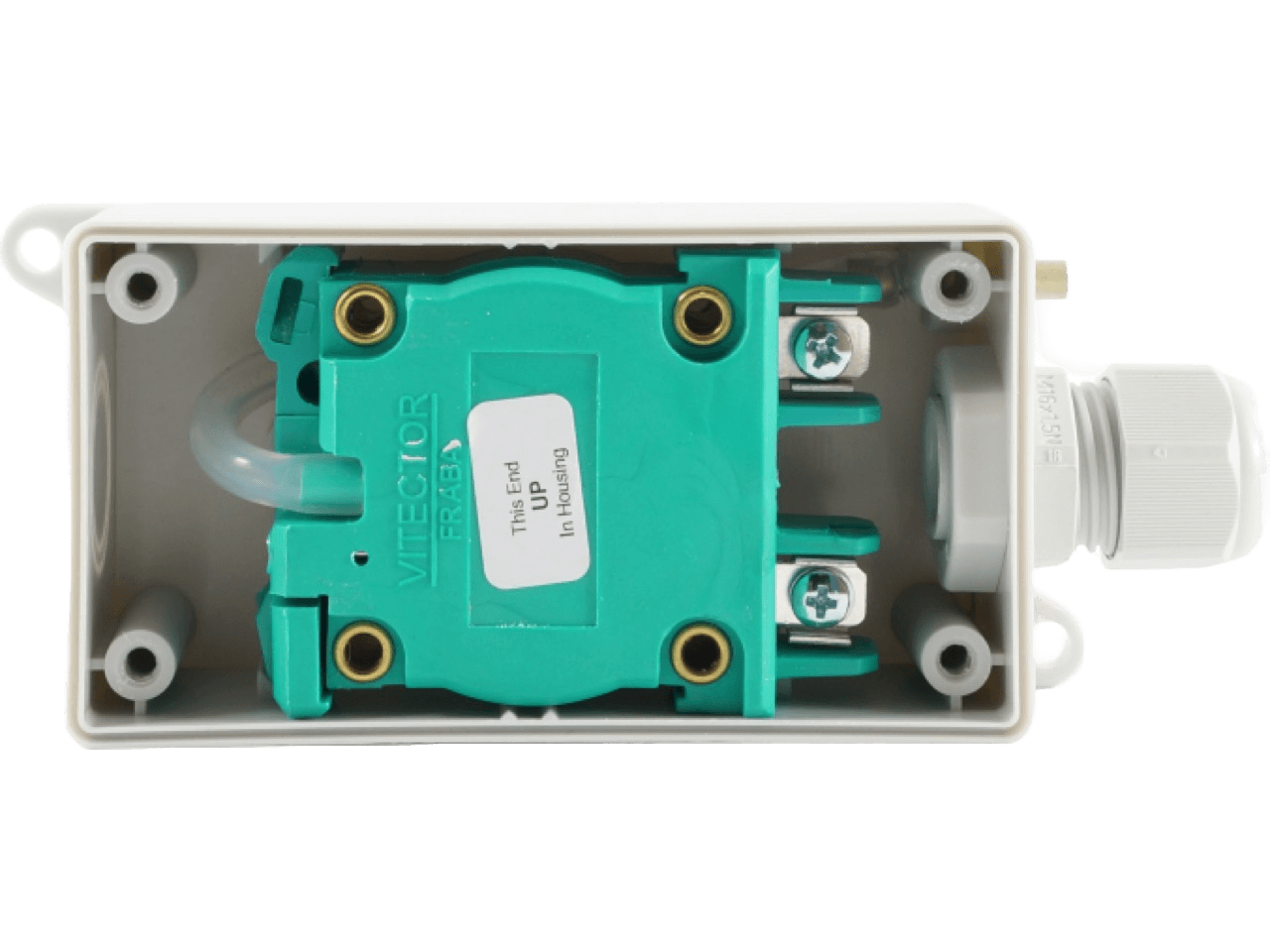

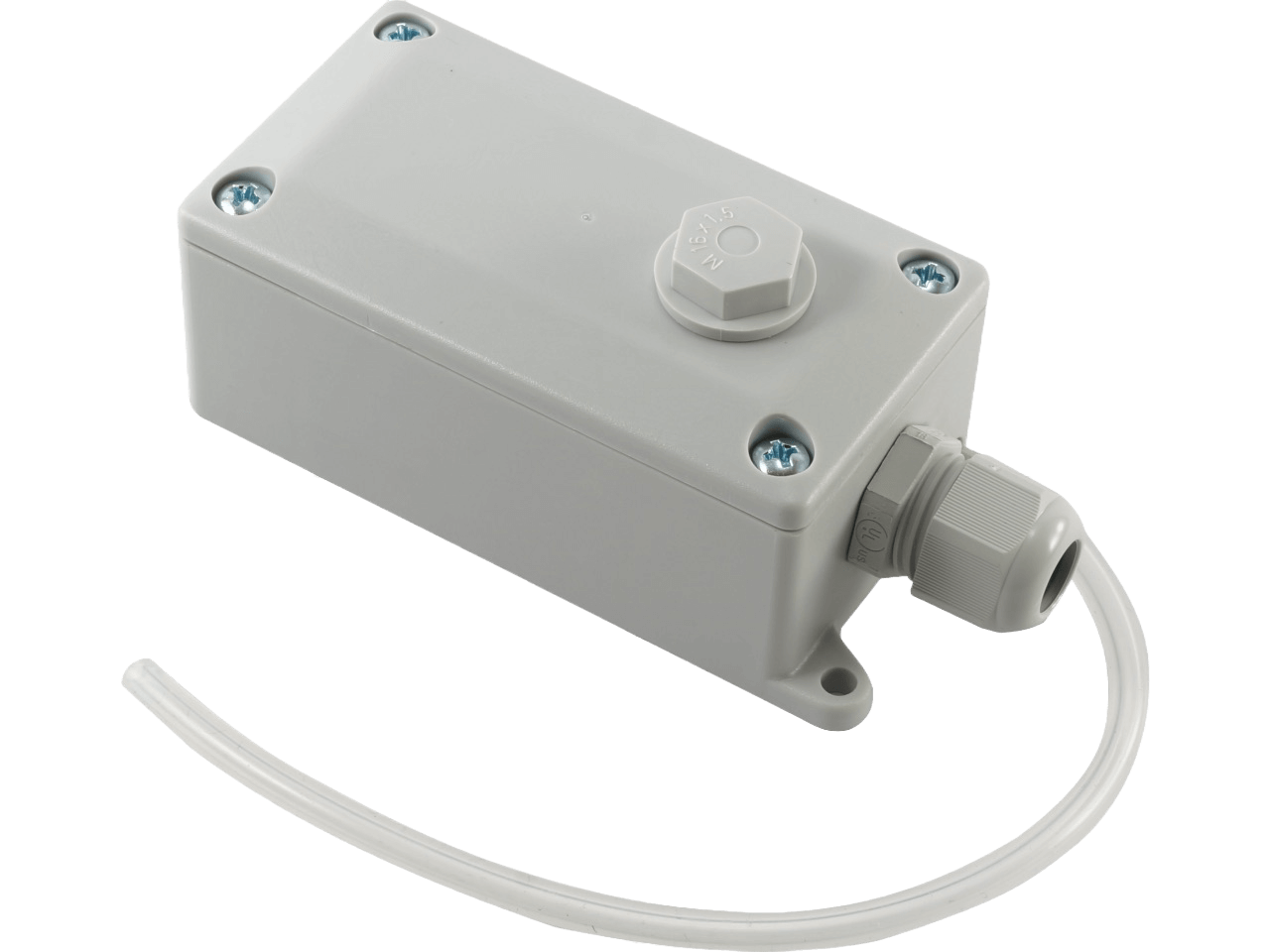

Airwave switch, normally closed contact, in IP65 enclosure, with M16 cable gland and silicone hose
Description:
The FRABA VITECTOR DW3O-200 airwave switch converts the pressure wave from a signal transmitter (e.g. push button, floor contact wave, threshold tread-mat, rubber contact strip) into an electrical switch signal. These airwave switches from FRABA VIECTOR are installed into the most diverse applications.
Properties:
- Contact type opener, opens upon contact with the switching mechanism
- In IP65 housing
- With screw connection
| Connection Type: | Screw Terminal |
|---|---|
| Housing: | Screw-Housing |
| Material: | ABS |
| Output: | NC |
| Protection Class: | IP 65 |
| max. Switching Current: | 0.5 A |
Login
Alternative article
airwave switch DW40 normally closed contact in plastic enclosureDescription:The Bircher Reglomat DW40 airwave switch is also available in an impact-resistant plastic housing unit. The airwave switch converts the airwaves from a signal generator (pushbutton, floor-mounted pressure sensing strip, rubber profile) into an electrical switching signal. Just a small amount of pressure of 3 or 4 mbar is enough to ensure the switch generates an electrical signal. Bircher Reglomat's DW-switches have proven reliable millions of times and are installed in a wide variety of applications.PropertiesContact type: Normally Closed Contact (NCC), opens upon contact with the switching mechanismWith connecting terminals and latch plates 6.3mmMounted in an impact-resistant plastic housingHousing unit protection class: IP65 (EN60529)
Accessories
Coil cord for doors, PUR/ PUR, black, cable configuration: fine-stranded 3x0,25mm², Li11Y11Y, dimensions: left end = 90mm, coil length = 620mm, right end = 500mm, max. extension length 2,5mDescription:The coil cord was developed especially for use on doors to connect the sensors and switches on the door leaf.Properties:Due to the 620mm-long spiral block, the coil cable can be extended to a length of up to 2.5m.The 3-core cable installation and a 0.25mm² conductor cross-section enables the signal of the optical sensing edge to be transmitted to the door control unit.Sheath and core insulation made of high-grade Polyurethane (PUR)Can be installed universally on doors from various manufacturers
Silicone hose, hardness shore A 55-60° +/- 5°, operating temperature -60 bis +200°C, 2m length
Connection plug for airwave switches, straight connection
Connection plug for airwave switches, angled connection
Rubber Profile for airwave switches, coil of 25m, material NBR
