ASO Safety Sicherheitskontaktmatten Sentir mat, Noppenoberfläche, 500 x 1.000 mm
€434.00
Product information "ASO Safety Sicherheitskontaktmatten Sentir mat, Noppenoberfläche, 500 x 1.000 mm"

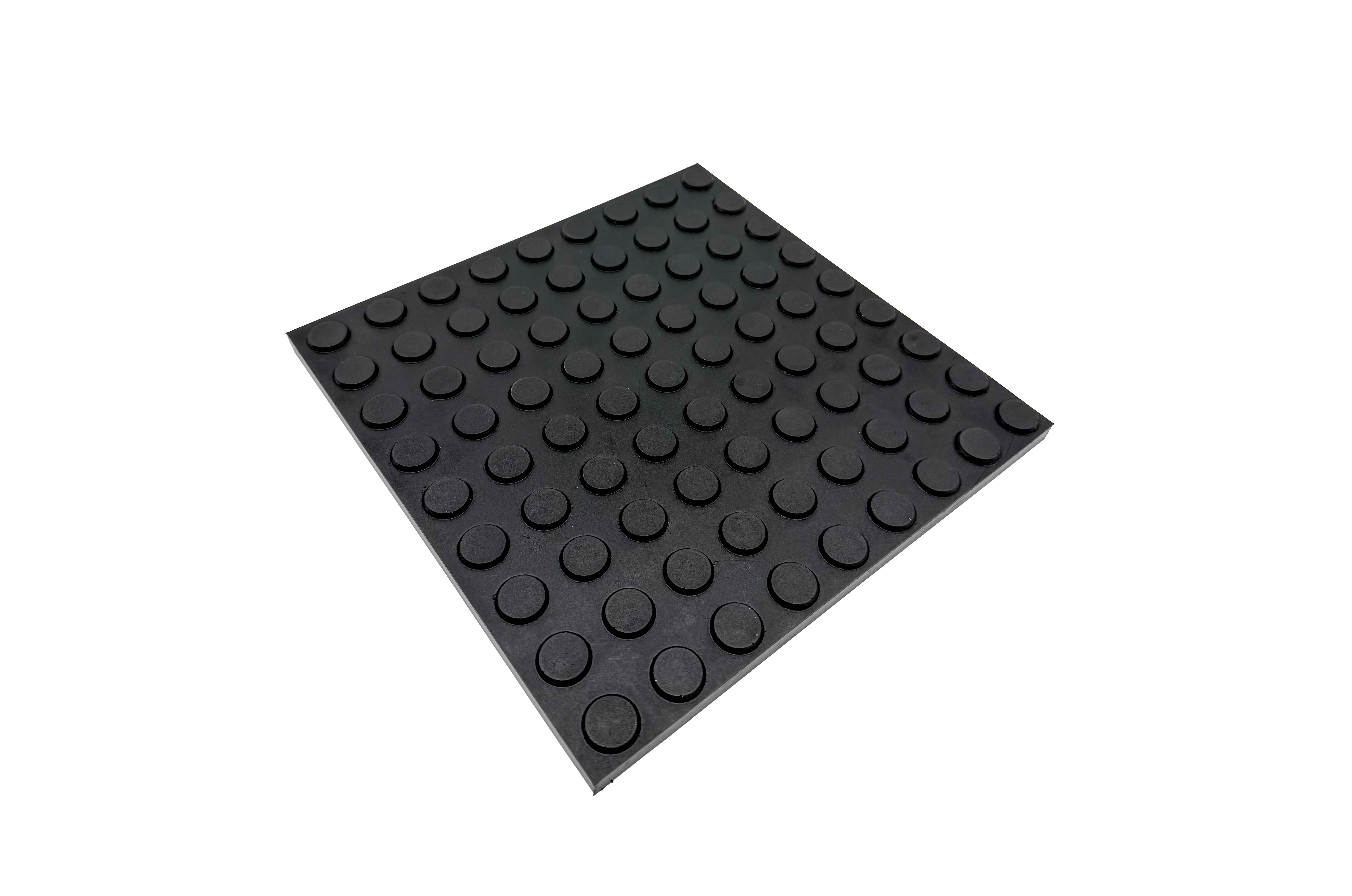

The SENTIR mat 14-1T4.0-NP is a high-quality safety contact mat from ASO Safety for surface monitoring on machines, robots and automated systems. Even slight movements are reliably detected.
Key features:
- Robust PUR moulded construction with non-slip dotted surface
- Size: 500 x 1,000 mm (plus ramp rail)
- With moulded ramp rail (30 mm)
- Fast response time < 25 ms for maximum protection
- Dust and water jet protected (IP65) for industrial use
- High load capacity up to 2000 N – ideal for harsh production environments
- Simple plug & play installation via pre-assembled M8 connectors (male/female)
- Switching pressure: approx. 150 N (test body Ø 80 mm)
- Inactive edge: 42 mm
- Expandable: series connection of several mats up to a total area of 10 m². For flush installation, the ramp rail can be easily cut off at the specified cutting gap.
✅ Ideal for: robot cells, machining centres, packaging machines, assembly and production lines.
For surface monitoring, control tasks and signal transmission in industrial plants, machine environments or automated workstations.
| Connection Type: | M8-Steckverbinder male/female |
|---|---|
| Material: | PUR |
| Max. Operating Temperature: | +55 °C |
| Min. Operating Temperature: | -10 °C |
| Protection Class: | IP 65 |
Login
Zubehör
The ASO Connection Set 4.4 is used to connect an ASO SENTIR mat contact mat to the corresponding evaluation electronics. The set consists of two high-quality 5 m connection cables (2-wire) with M8 connectors in male and female versions. It is ideal for the safe and quick connection of ASO SENTIR mat contact mats. The robust design ensures reliable signal transmission and easy installation in safety-relevant areas.
The ASO Connection Set 4.3 is used to connect an ASO SENTIR mat contact mat to the corresponding control unit. The 8.2 kOhm terminating resistor included in the set is connected to the free end of the mat or, in series connections, to the last contact mat. The 5 m long connection cable connects the contact mat to the control unit. It is equipped with an M8 connector (female) on one side and open cable ends on the other side for direct connection to the control unit.
Connection cable for ASO Safety safety contact mats SENTIR Mat Length 5000 mm, with M8 connector (male, 2-pin) on one end and open cable ends (2-wire) on the other end.
Terminating resistor for ASO Safety safety contact mats SENTIR Mat M8 plug (3-pin) with 8.2 kOhm resistor
