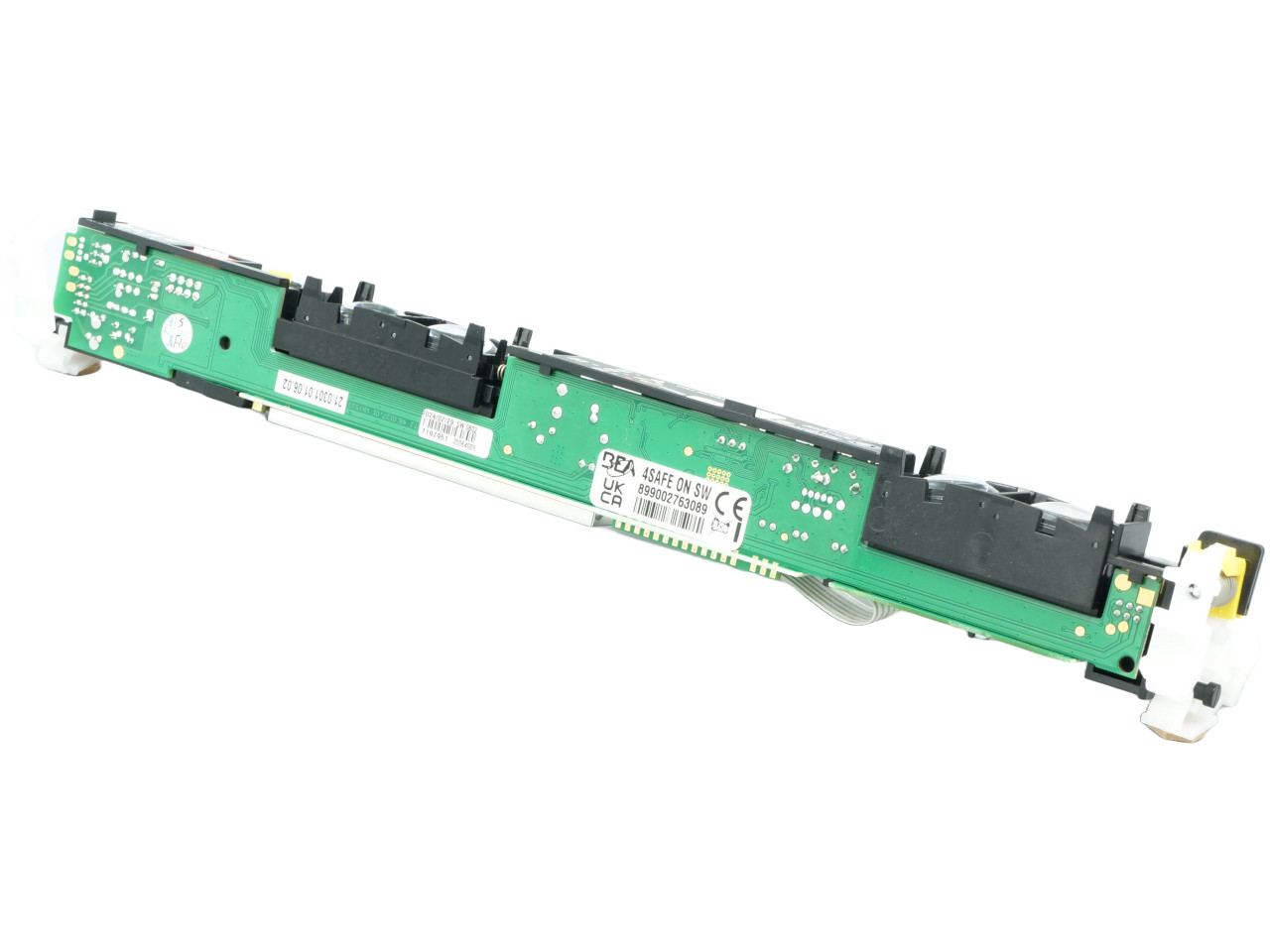

BEA 4SAFE Swing ON module

4safe ON SW, safety sensor for swing doors, 2 sensor modules, in housing, length 1100 mm, colour: silver

Safety sensor for doors and windows, set contains 2 x Laser-Scanner (left- and right-hand installation), complete monitoring of the detection zone (70 laser points) and the pinch zone (100 laser points), max. range 4mDescription:The BEA LZR® FLATSCAN SW uses laser technology time-of-flight measurement) to monitor automatic swing doors. Full protection of the doors is guaranteed by 170 measurement points. One single FLATSCAN SW Module is enough to secure the entire door wing as well as the hinge and the area directly to the side of the closing edge.The LZR FLATSCAN can be used for monitoring as a pair (e.g. in swing doors), or as a single sensor (e.g. in windows). Properties:Maximum detection range of 4m (diagonal) with reflectivity of 2% (i.e. at 1.5m -> max. H = 3.7 m).Possible monitoring of the closing edgeCompact design (8.5 cm x 14.2 cm), can be integrated into any doorWorks with all floor types ((slatted floors, wire mesh, absorbent carpets, reflective flooring, slippery surfaces, etc.) and with the doors' surroundings (handrails, walls, radiators, dustbins, etc).One module per side is enough to secure the door wings as well as its hinges.Useable as a pair (i.e. for doors) or on its own (i.e. for windows).

Smoke detection unit for GEZE smoke switch control panel RSZ 6/7, as well as for TS 5000-R and TS 5000 R-ISM, GEZE item no. 103555

Hekatron ORS 142, Optical smoke and thermal switch, detection of smouldering fires and open fires with smoke development, for wall or ceiling mounting, for control of hold-open control unitsDescription:The optical smoke switch ORS 142 from Hekatron offers a solid solution for fire detection. With its optical operation indicator, Contamination compensation and processor control, it ensures a high level of safety. The ORS 142 is specifically designed for the detection of smoldering and open fires with smoke generation, as well as the control of hold-open control units. Technical features: Optical contamination/condition indication for easy monitoring. Processor control for accurate fire detection. Suitable for smoldering and open fires with smoke generation. Ideal for control of hold-open control unit Replacement indicator according to DIN 14677 Optional integrated circuit monitoring Extended temperature range for down to -30 °C Measuring chamber monitoring Communication port for RSBus Potential-free normally closed contact Thermocouple for tripping at ambient temperature above 70 °C With dust protection cap The sensor replacement indicator automatically indicates the replacement of the detector after 8 years as required by DIN 14677. Choose the Hekatron ORS 142 for reliable fire detection and maximum safety!
