GfA Elektromaten SE 14.15 SK DES Ø25,4-Drive for Sectional Doors 140Nm Emergency Hand Chain
Technical Support Hotline +44 115 7180691
Only 100% New and Original Parts
Special Prices available for Door Dealers and Resellers. Contact us!
Stocked Products Ship within 24h
Product information "GfA Elektromaten SE 14.15 SK DES Ø25,4-Drive for Sectional Doors 140Nm Emergency Hand Chain"
SE-ELEKTROMATEN, Drive for counter balanced sectional doors, output torque 140Nm, output speed 15 rpm, max. door weight 6000 N, supply voltage 3~230V/400V, hollow shaft diameter 25,4mm, with emergency hand chain for manual operation, digital limit switch DES, limit switch range E=20 revolutions max.
Description:
The GfA Elektromaten SE14.15 SK-DES sectional door drive with an output torque of 140Nm and an output speed of 15rpm is a drive for counterbalanced sectional doors.
- Normally installed on directly the door shaft
- With digital limit switch DES ensuring parameters do not need resetting following a power failure

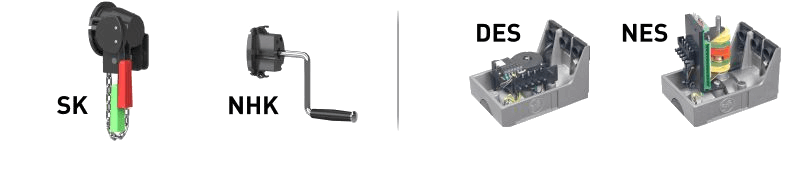

- Emergency manual override with rapid hand chain operator
- Maximum door weight 6000N
- Supply voltage 3~230V/400V
| Emergency Operation: | Hand Chain |
|---|---|
| Hollow- / Output-Shaft (Ø): | 25.4 mm |
| Limit Switch type: | digital Limit Switch DES (GfA Elektromaten) |
| Limit Swtich Range: | 20 |
| Max. output speed CLOSE for frequency inverter operation: | 26 min^-1 |
| Max. output speed OPEN for frequency inverter operation: | 26 min^-1 |
| Output Speed: | 15 min^-1 |
| Output Torque: | 140 Nm |
| Power: | 0.35 kW |
| Supply Voltage: | 3~230/400 V |
| max. Door Weight: | 6000 N |
| max. Holding Torque: | 600 Nm |
| max. Movements per Hour: | 16 |
