GfA Elektromaten SI 40.40 FI NHK DES Ø40-Safedrive® with Integrated Frequency Inverter 400Nm with Emergency Hand Crank
Picture can deviate from the original
Technical Support Hotline +44 115 7180691
Only 100% New and Original Parts
Special Prices available for Door Dealers and Resellers. Contact us!
Stocked Products Ship within 24h
Product information "GfA Elektromaten SI 40.40 FI NHK DES Ø40-Safedrive® with Integrated Frequency Inverter 400Nm with Emergency Hand Crank"

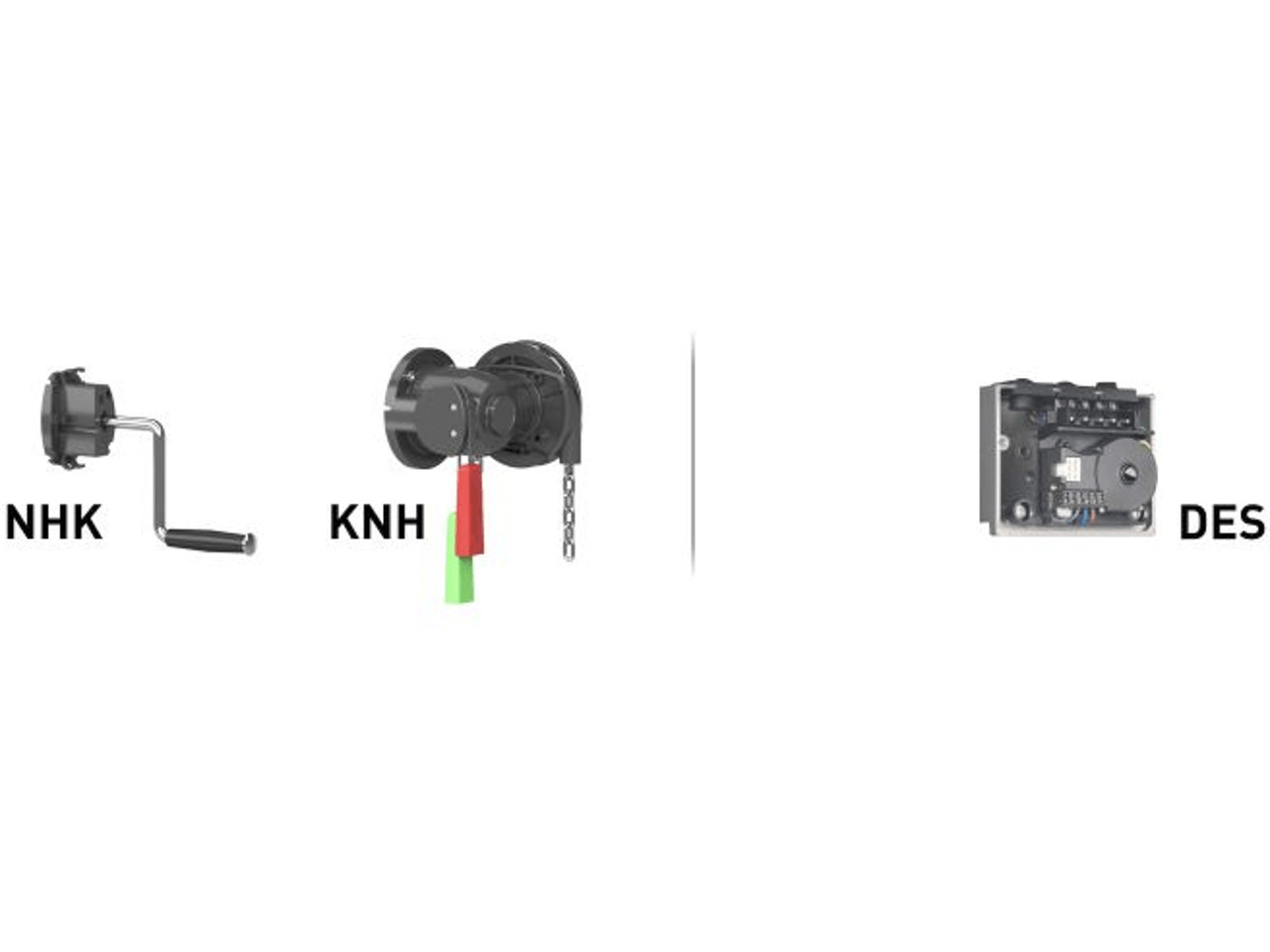

SI-ELEKTROMATEN, with integrated frequency inverter, drive for non-balanced doors which require an anti-fallback device, the patented safety brake is built into the gear, output torque 400Nm, output speed up to 40 rpm, hollow-shaft-Ø 40mm, supply voltage 1N~230V, with emergency hand crank for manual operation, digital limit switch DES, limit switch range E=20 revolutions max.
| Emergency Operation: | Hand Crank |
|---|---|
| Hollow- / Output-Shaft (Ø): | 40 mm |
| Limit Switch type: | digital Limit Switch DES (GfA Elektromaten) |
| Limit Swtich Range: | 20 |
| Locking Torque: | 760 Nm |
| Output Torque: | 400 Nm |
| Power: | 1.5 kW |
| Supply Voltage: | 1N~230 V |
| max. Movements per Hour: | 30 |
| max. Output Speed: | 40 min^-1 |
| min. Output Speed: | 9 min^-1 |
