GTE Relay-Module RM44 for WST 18
€299.00
delivery time: 6-10 working days
Product information "GTE Relay-Module RM44 for WST 18"

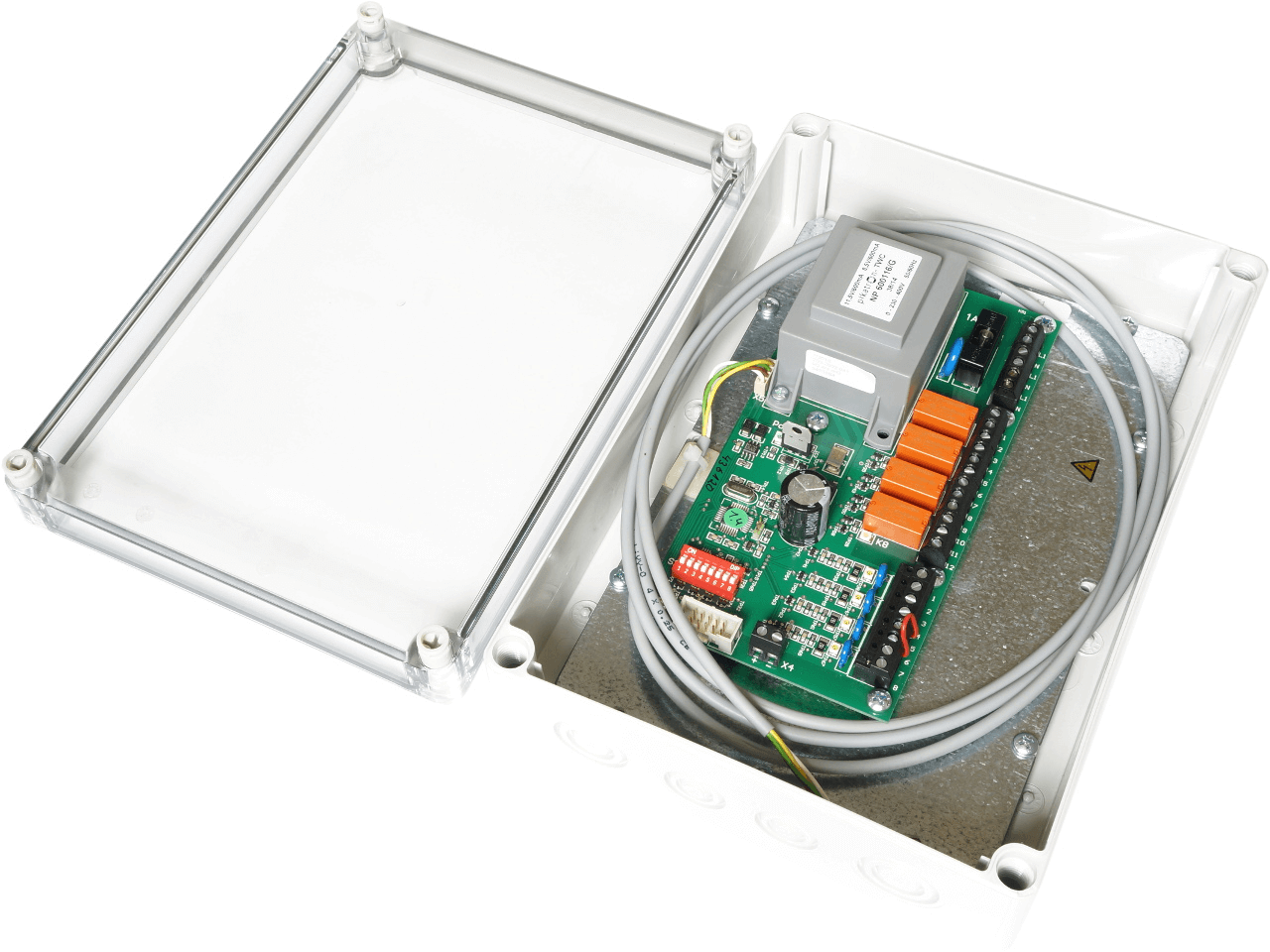

Relay module for WST 18, for traffic control applications, traffic light controls etc., in housing 175 x 250 x75mm, with 4 relay outputs and 4 inputs, includes 2m connection cable to WST 18, 230V, 50 Hz
Description:
The relay module RM44 by GTE is an extension module for use with the WST-18 control unit. The relay module adds 4 inputs and 4 outputs to the control unit. The RM44 can be used in 3 different modes, selectable via DIP switch.
Properties:
- contact rating of relays 2A
- 24 V DC, 250mA power supply connection for external components
- Mode 1: Manual configuration of relays via WST-18
- Mode 2: 2-way traffic light control
- Mode 3: Central control for 2-element doors (e.g. swing gates or sliding gates)
