MFZ Marantec Ovitor Replacement PCB for Door Control CS 300 FU
€0.00
Product information "MFZ Marantec Ovitor Replacement PCB for Door Control CS 300 FU"

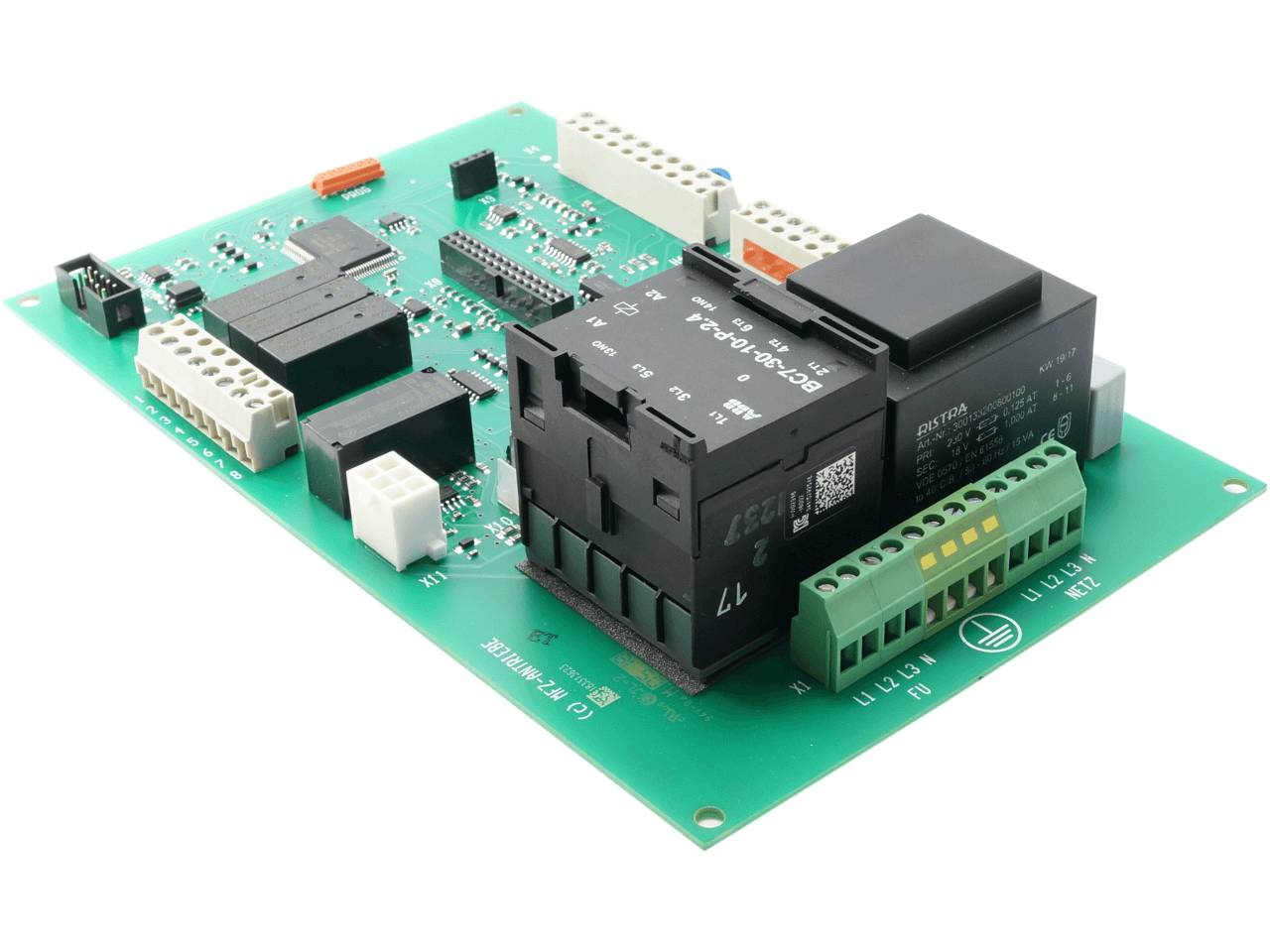

Replacement PCB for CS 300 FU by MFZ Marantec Ovitor
Description:
Please note:
This product has been discontinued by the manufacturer and is no longer available.
In the "follow-up articles" tab you can find a link to the suggested replacement product.
| 24V-Supply external Accessories: | 250 mA |
|---|---|
| Additional Functions: | Partial Opening, Timer-to-Close |
| Max. Drive Power: | 3 kW |
| Max. Operating Temperature: | +45 °C |
| Min. Operating Temperature: | -10 °C |
| Modes of Operation: | Automatic, Hold-to-Run |
| Programmable Relay Contact: | 4 |
| Protection Class: | IP 65 |
| Radio Function: | Optional |
| Sensor Inputs: | Optical Sensing Edges, Photo Eye, Pull-In Protection, Resistive Sensing Edge (8k2) |
| Supply Voltage: | 1N~230 V, 3N~400 V |
