ELKA control unit MO 36
€428.00
delivery time: 6-10 working days
Product number:
TA1000934
Product information "ELKA control unit MO 36"

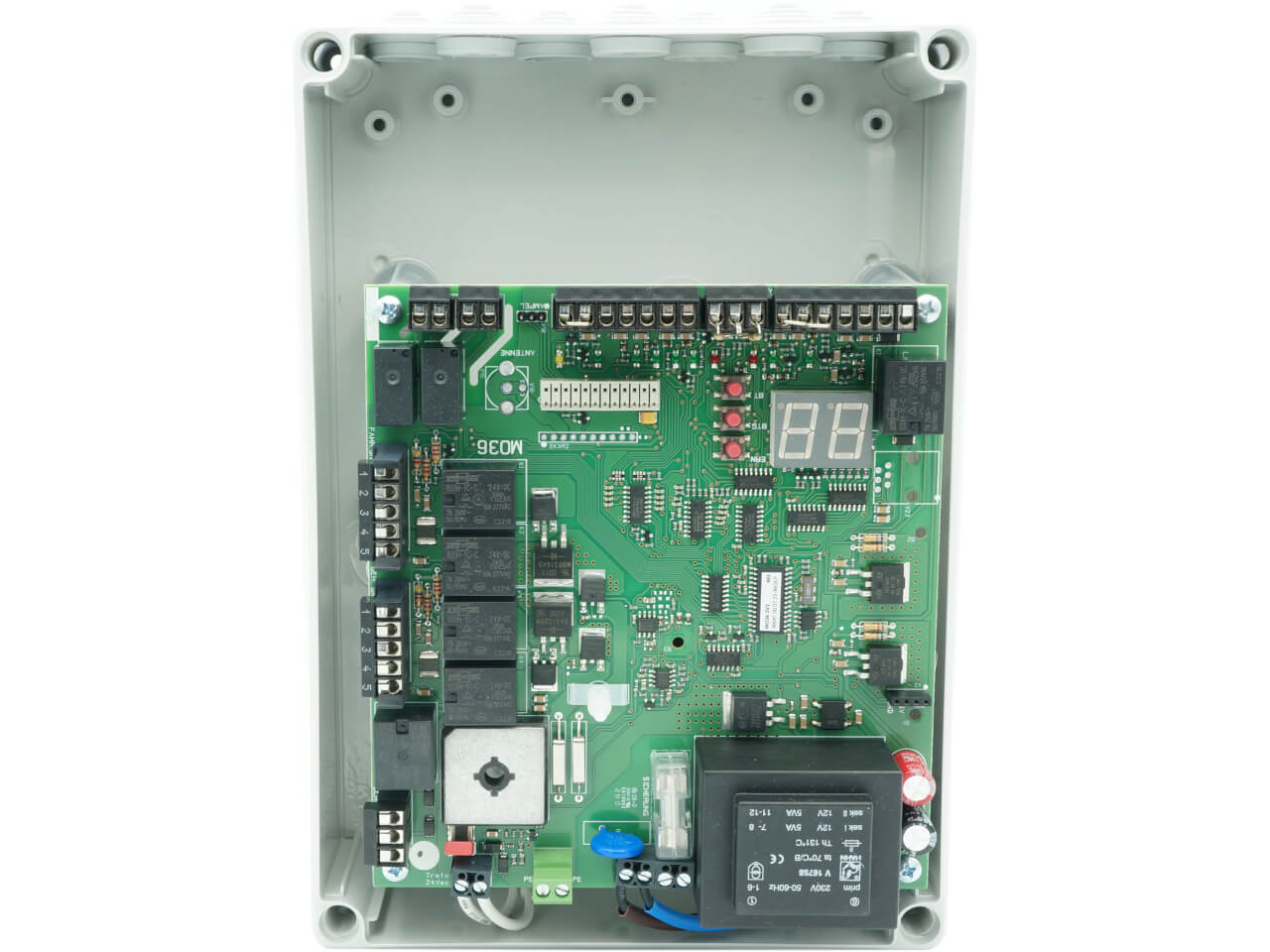

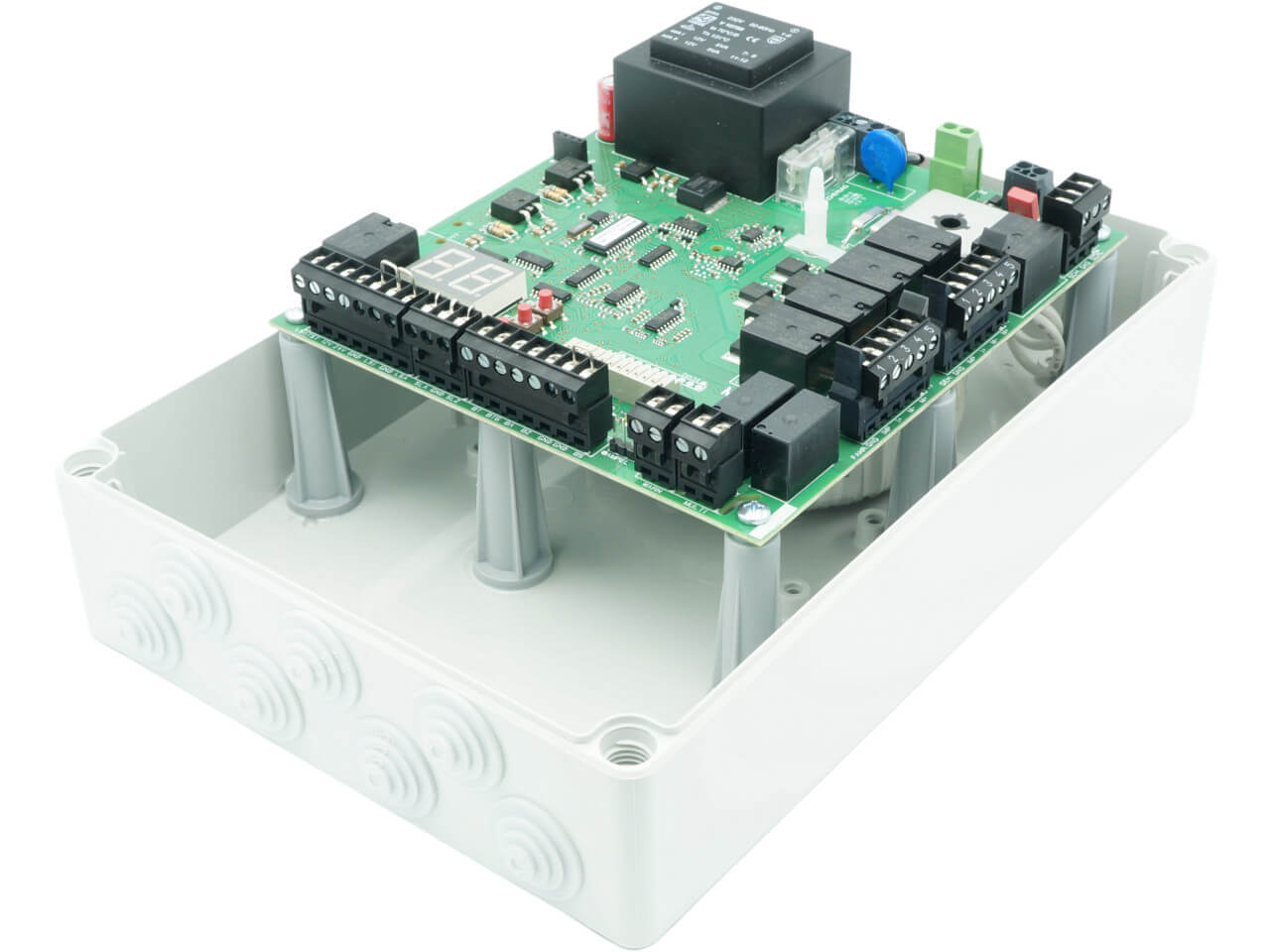

The MO36 motor control unit from Elka is specially designed for swing gate openers and offers precise and reliable control. With its streamlined menu navigation via a 2x7 segment display, operation is simple and intuitive. It is used specifically on the ELKA Komet, Zenit-S and Terra-S models.
Main features:
- Soft start and soft stop for smooth starting and braking
- Automatic feed adjustable from 1 to 299 seconds
- Speed adjustable in 8 steps
- Separate OPEN and CLOSE settings for each door leaf
- Gust suppression can be activated with safety contact profiles
- Operating modes: single-button or three-button operation
- Multifunction relay for e.g. third radio channel
- Fast fault analysis via LEDs at the inputs
- Force switch-off with short return
- Light barrier connection with patented test function
- Opening options: Full and partial opening (active leaf function)
- Simple installation thanks to plug-in terminals
- Can be extended with weekly timer module, radio receiver and additional traffic light connection module
